Operating Conditions
Maximum fluid temperature up to +35℃.
Maximum sand content: 3%.
Maximum immersion :15m.
Minimum well diameter: 4".

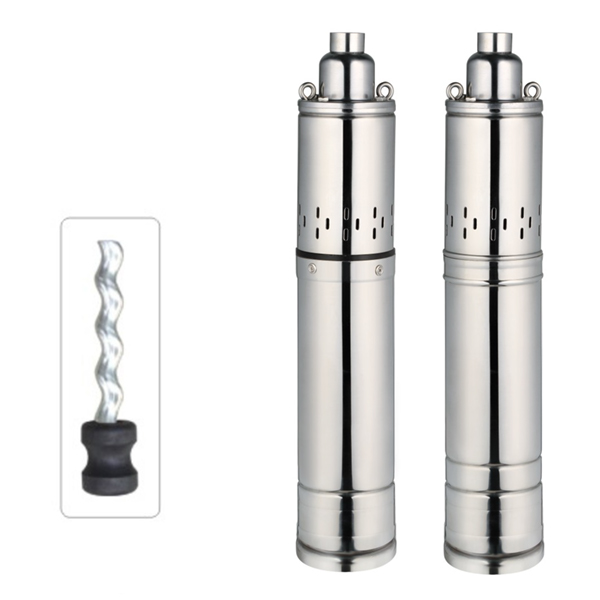

Motor and Pump
High efficiency motor
Three-phase: 380V-415V/50Hz
Single-phase:220V-240V/50Hz
Options on request
Special mechanical seal
Other voltages or frequency60 Hz
100% Sufficient Capacity
Long cycle life as nominal
Good quality materials & assembling
