Technical Description/Descripciones Tecnicos

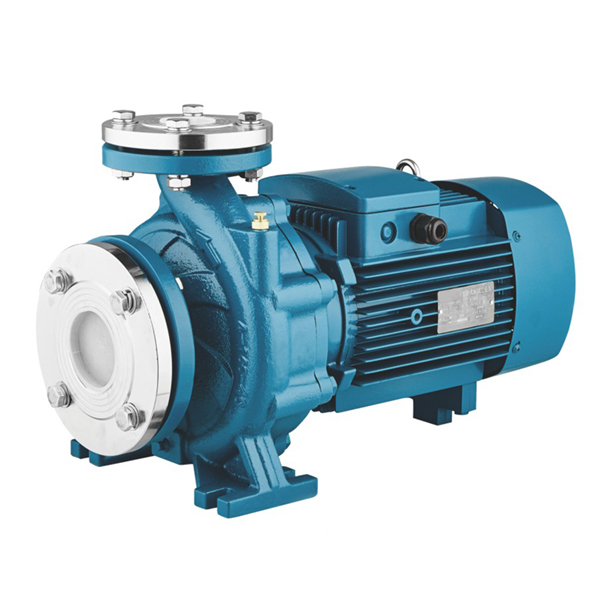

New EN 733standard centrifugal pump
Both square motor&round motor available
YE3 high efficient motor, with protection IP55classF
Pump case with anti-corrosive coating
Impeller in stainless steel AlSI304 or castiron
Shaft in stainless steel AISI304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal
Using Limits/Limites De Utilizacion
Liquid temperature between-10℃ and +120℃
Ambient temperature up to +50℃
Max.working pressure 16 bar
Continuous service S1
100% Sufficient Capacity
Long cycle life as nominal
Good quality materials & assembling
